Caliper Checkers AND Micrometer Checkers

Caliper Checker
Caliper Checker

Micrometer checker
Micrometer Checker
Caliper Checker

Used for the calibration of Venire Calipers and Height Gauges, Caliper Checker is designed to check accuracy of Main Scale at regular intervals through out the range, which meets the requirements of IS Standards.

The instrument is sufficiently rigid and consists of stepped slip gauges permanently fixed in inner casing. The Caliper Checker is ideal for in house periodic calibration of measuring instruments i.e. Venire Caliper and Height Gauge.

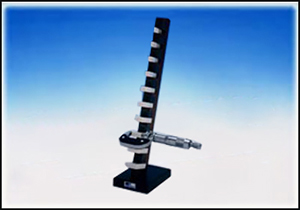

Micrometer Checker

Mikronix offers micrometer checker for quick calibration of 0-25mm micrometers. These sets are available in metric & inch sizes. They are designed specially to suit calibration and inspection of micrometers.

The sizes in the set are so selected that they ensure checking of micrometers at various radial positions. Thus in addition to the pitch error, errors due to drunken threads also can be located. This set is also recommended by is-2967 of 1964 for inspection of external micrometers. Micrometer Checking Set comprises of the following sizes in grades '0, ' I ' and ' II'.
Metric 10-piece Set
2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Metric 8-pieces set
3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Imperial 8 pieces set
0.130", 0.250", 0.385", 0.50", 0.615", 0.750", 0.870" & 1".

Caliper Checker
Micrometer Checker
Technical Specifications
Range Height Measurement External Measurement Internal Measurement
0-300 370 300 300
0-600 670 600 600
0-1000 1070 1000 1000
